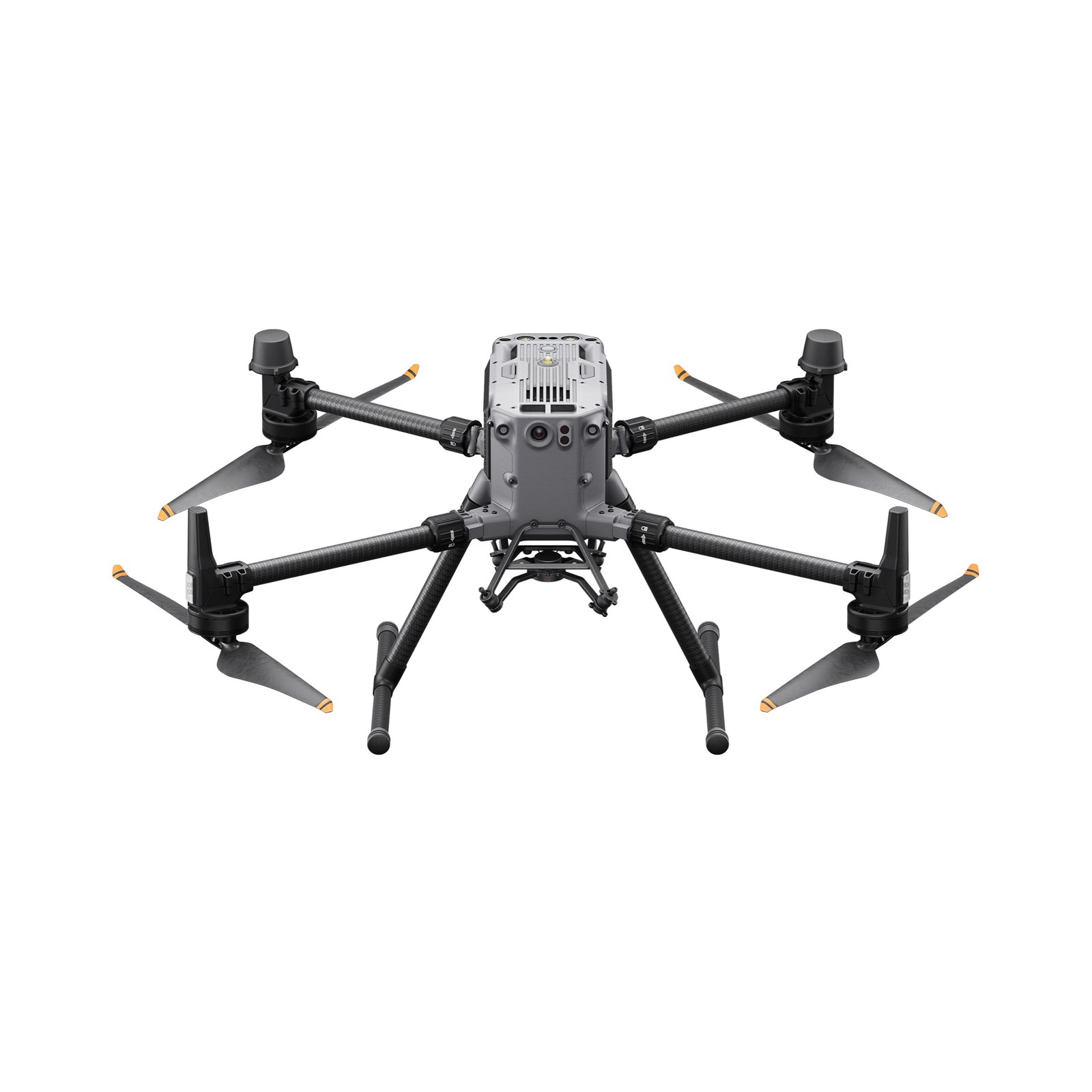

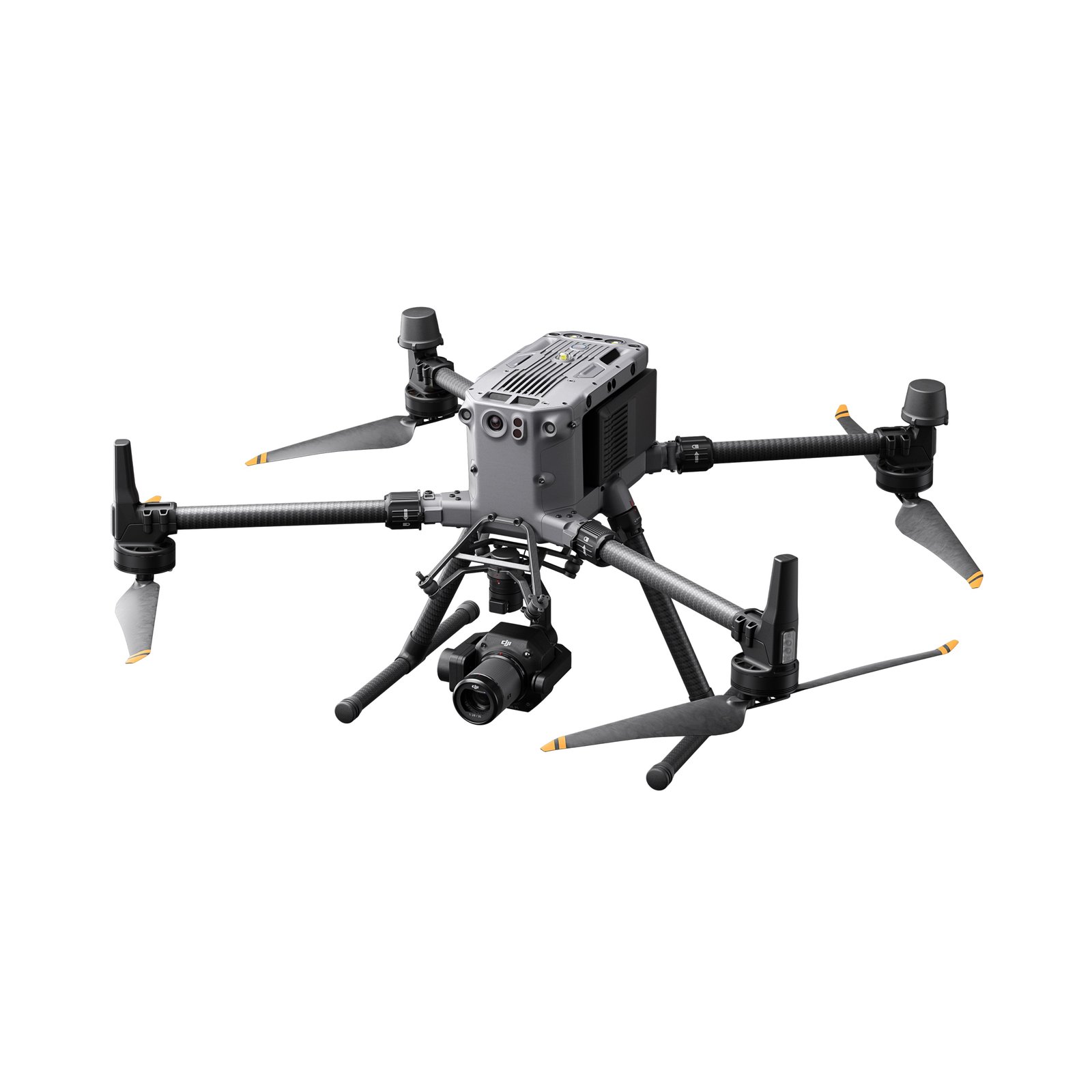

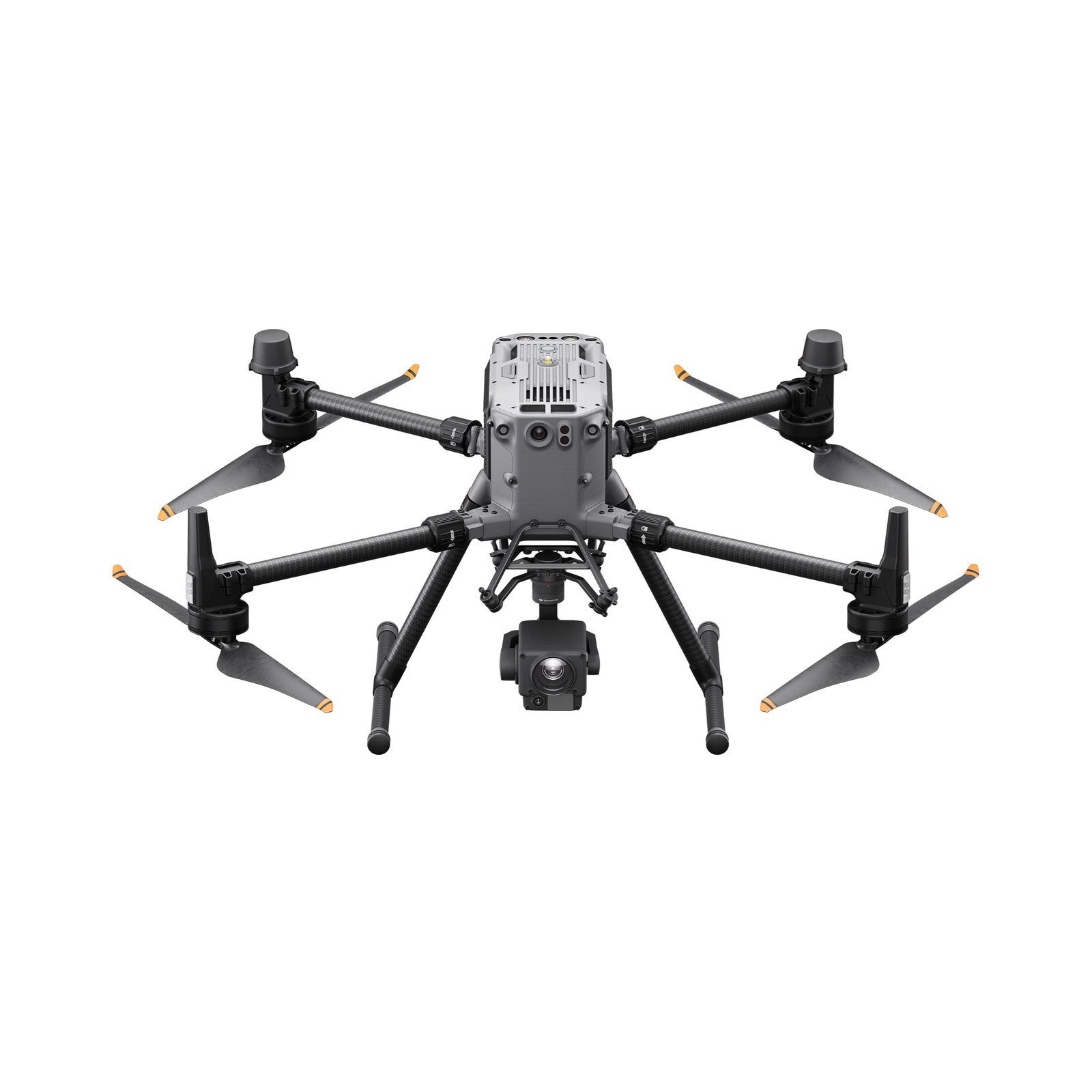

Matrice 350 RTK
Description
Description
| Specification | Details |
|---|---|
| Dimensions (Unfolded, Excluding Propellers) | 810 mm (L) × 670 mm (W) × 430 mm (H) |
| Dimensions (Folded, Including Propellers) | 430 mm (L) × 420 mm (W) × 430 mm (H) |
| Symmetric Motor Wheelbase | 895 mm |
| Weight (Including Lower Single Gimbal Mount) | Aircraft Weight (Without Battery): Approx. 3.77 kg Aircraft Weight (With Dual Batteries): Approx. 6.47 kg |
| Max Load Capacity of Single Gimbal Vibration Isolator | 960 g |
| Maximum Takeoff Weight | 9.2 kg |
| Operating Frequency | 2.4000 GHz to 2.4835 GHz 5.150 GHz to 5.250 GHz (CE: 5.170 GHz to 5.250 GHz) 5.725 GHz to 5.850 GHz 5.1 GHz and 5.8 GHz bands are not supported in some regions, and the 5.1 GHz band is only for indoor use in some regions. Please refer to local laws and regulations for details. |
| Transmission Power (EIRP) | 2.4000 GHz to 2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.150 GHz to 5.250 GHz (CE: 5.170 GHz to 5.250 GHz): <23 dBm (CE) 5.725 GHz to 5.850 GHz: <33 dBm (FCC/SRRC), <14 dBm (CE) |
| Hover Accuracy (Calm or Light Wind) | Vertical: ±0.1 m (Visual Positioning working normally) ±0.5 m (GNSS working normally) ±0.1 m (RTK Positioning working normally) Horizontal: ±0.3 m (Visual Positioning working normally) ±1.5 m (GNSS working normally) ±0.1 m (RTK Positioning working normally) |
| RTK Position Accuracy (In RTK FIX Mode) | 1 cm + 1 ppm (Horizontal) 1.5 cm + 1 ppm (Vertical) |
| Maximum Rotation Angular Velocity | Pitch Axis: 300°/s Yaw Axis: 100°/s |
| Maximum Pitch Angle | 30° 25° when using N Mode and front vision system is enabled |
| Maximum Ascent Speed | 6 m/s |
| Maximum Descent Speed (Vertical) | 5 m/s |
| Maximum Tilt Descent Speed | 7 m/s |
| Maximum Horizontal Flight Speed | 23 m/s |
| Maximum Flight Altitude | 5000 m (when using 2110s propellers and takeoff weight ≤ 7.4 kg) 7000 m (when using 2112 high-altitude quiet propellers and takeoff weight ≤ 7.2 kg) |
| Maximum Withstandable Wind Speed | 12 m/s |

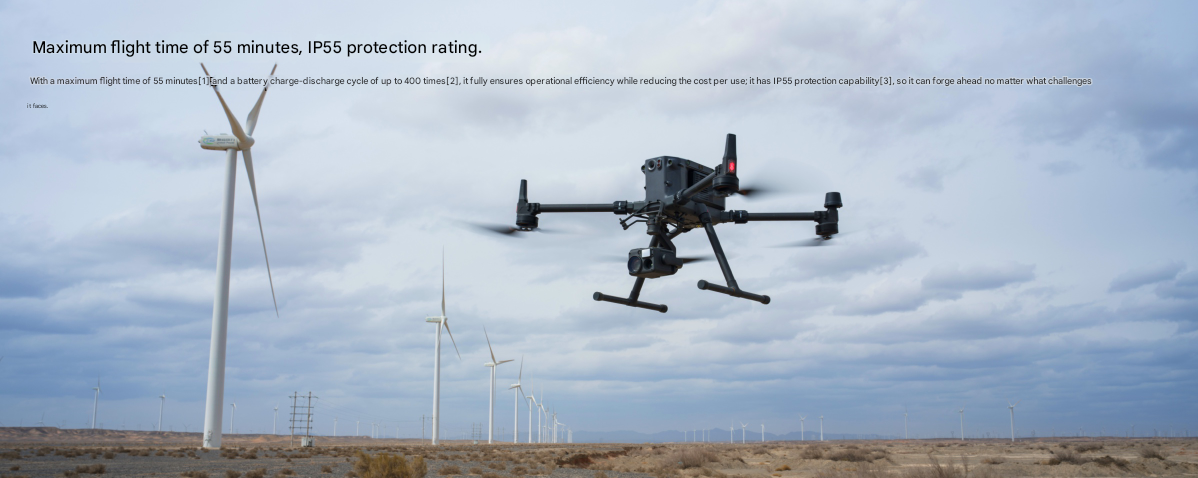

| Maximum Flight Time | 55 mins Measured in windless environment with no payload, flying forward at approx. 8 m/s until 0% battery remaining. For reference only. Actual flight time may vary due to flight mode, accessories and environment. Please refer to app prompts. |

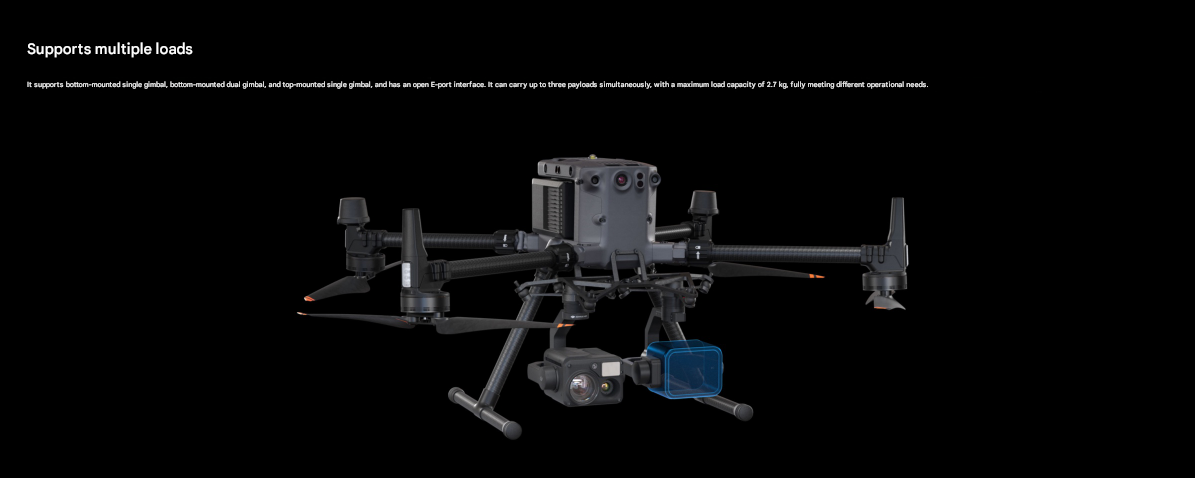

| Compatible DJI Gimbals | Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, Zenmuse P1, Zenmuse S1, Zenmuse V1 |
| Third-Party Payloads | Only supports certified payloads based on DJI Payload SDK |
| Supported Gimbal Mounting Methods | Lower Single Gimbal Upper Single Gimbal Lower Dual Gimbals Lower Single Gimbal + Upper Single Gimbal Lower Dual Gimbals + Upper Single Gimbal |
| IP Rating | IP55 IP rating is not a permanent standard. Protection capability may decrease due to product wear and tear. |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| Operating Temperature | -20°C to 50°C |
| Classification | EU Class C3 |
